Waves Of Reprise Dual Delay

The Waves Of Reprise Dual Delay pedal conveniently combines two identical delay circuits, with analog-style voicing, side-by-side in one compact enclosure and allows for a wide range of routing configurations for many different delay effects and applications.

Maximum Delay Time: Approximately 600 milliseconds.

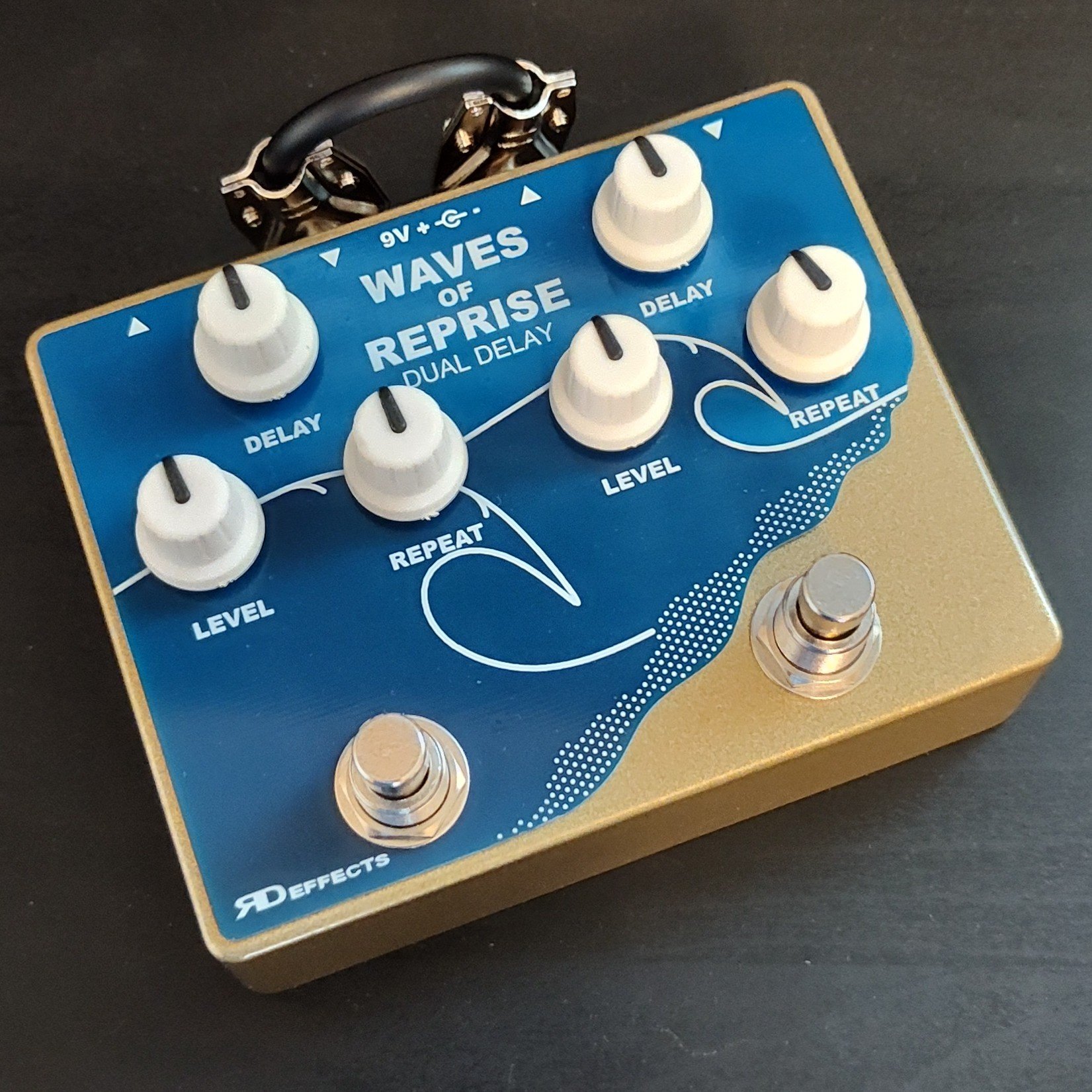

This PT2399-based delay pedal is externally controlled by the two sets of three knobs labelled Delay, Level, and Repeat. Inside the enclosure, each side has a trim pot for setting the upper limit of Repeats for up to infinite repeats, if desired. The pedal uses soft-touch footswitches and relay true-bypass switching. The LED indicators reside under the faceplate between the Level and Repeat knobs for each respective side. When on, the LEDs will cause a diffused glow through the faceplate between the knobs. When off, the LEDs will not be visible through the faceplate, giving a clean "stealthy" look.

There are several signal routing options possible:
1. Mono, single delay. Use only one side.

2. Mono, series delays. This configuration stacks the two sides. An external 1/4" patch cable (included if requested) is required between the output of the first side and the input of the second side. Connect your guitar to the input of the first side, install the patch cable between the sides, and then connect an instrument cable from the output of the second side to the amp.

3. Mono in, stereo out. For this configuration, connect your guitar to the input of one side, and connect two instrument cables from the outputs of both sides to two separate amps. Leave the input jack of the second side open.

4. Dual mono (or Stereo In, Stereo Out). Connect signal 1 to side 1, and out to amp 1. Connect signal 2 to side 2, and out to amp 2. This configuration may be convenient if your signal chain is already split to left and right before the pedal.

NOTE: When ordering, please indicate if you would like the 4 inch patch cable, otherwise it will not be supplied. The patch cable will be the same as the one shown in the photo with pancake style connectors and Mogami W2319 instrument cable. Any standard style 1/4 inch patch cable typically used for connecting guitar pedals will also work, in case you want to use one you already have.

For more information, click the link at the bottom of the page "More Info: Waves Of Reprise Dual Delay"
